Power protection systems are the backbone of modern data centers, where even a brief power interruption can lead to significant financial losses and operational disruptions. Ensuring reliable operation, optimizing energy efficiency, and maintaining power quality for sensitive equipment hinges on understanding the key performance metrics of Uninterruptible Power Supplies (UPS). These systems are designed to maintain power flow during utility disruptions, and the effectiveness of their operation depends on a variety of metrics, including voltage regulation, efficiency, battery runtime, and more. This article explores these essential UPS performance metrics, helping data center operators understand how to interpret them and why they matter for day-to-day operations.
Essential Electrical Performance Metrics
1. Input Voltage Range and Tolerance
One of the first metrics to evaluate is the input voltage range and its tolerance. This specification determines how well a UPS handles fluctuations in the incoming power supply without prematurely engaging battery backup. Quality systems typically operate within a tolerance of ±15-25% of nominal voltage. For example, for a 480V system, this means the UPS can run normally between 408V and 552V. Some high-end systems, like the UPS5000-E, offer impressive flexibility, operating within a range from 320V to 575V in three-phase configurations. A broad input voltage range helps prevent excessive battery cycling during minor voltage fluctuations, which, in turn, increases battery lifespan.
When assessing this metric, pay attention to both the steady-state operating range and the UPS’s ability to handle brief excursions outside the typical voltage limits. Systems with narrower input windows may transfer to battery power more often, leading to quicker wear on batteries and reducing overall system reliability.
2. Output Voltage Regulation Accuracy
Output voltage regulation refers to how accurately a UPS can maintain its rated output voltage despite fluctuations in input power or changes in load. Premium UPS systems maintain an output voltage within ±1% of the nominal value, which ensures that the voltage stays within a tight range (e.g., 475V to 485V for a 480V output).
This level of regulation is critical for protecting sensitive equipment. While many servers and electronic devices can tolerate a voltage variation of ±10%, a UPS that maintains tight voltage control will optimize power supply efficiency and extend the lifespan of hardware. Modular UPS architectures often excel in this regard due to their distributed power processing—individual modules automatically compensate for minor variations, maintaining system-wide voltage stability.
3. Frequency Synchronization Capabilities
Frequency synchronization measures how accurately a UPS matches the output frequency (typically 50 or 60Hz) with the input frequency during normal operation. It also assesses the system’s ability to stabilize the frequency during transitions between power sources, such as when switching from utility power to battery backup.
High-quality UPS systems can maintain a synchronization accuracy of ±0.1Hz in double-conversion mode, with transfer times under 2 milliseconds. This precision is vital for equipment that has stringent frequency requirements, such as medical imaging systems or precision manufacturing tools. Advanced models like the PowerPOD offer even better performance, maintaining a ±0.05Hz accuracy in normal operation and providing perfectly stable output during battery mode.
4. Efficiency and Energy Consumption Metrics
Understanding Efficiency Curves
UPS efficiency is not a one-size-fits-all figure—it varies across different load levels. The full efficiency curve provides more valuable insight than a single peak efficiency number. Most systems perform most efficiently between 40-80% of their rated load, with efficiency dropping off at both very low and very high loads. For example, a modular UPS might provide 97% efficiency at 60% load, but only 92% at 20% load.
To optimize energy use, proper system sizing is crucial. An oversized UPS running at low loads may waste more energy than a properly sized unit operating at its efficiency sweet spot. Advanced solutions, like Huawei’s smart power supply, use adaptive algorithms to optimize performance and maintain high efficiency even at partial loads.
The Importance of ECO Mode Efficiency
ECO mode (Economy mode) can significantly enhance UPS efficiency by bypassing unnecessary power conversion steps when clean input power is available. Some systems, like the S-ECO mode in certain Huawei UPS models, can achieve ultra-high efficiency while still providing protection capabilities.
However, not all ECO modes are created equal—some implementations prioritize efficiency over protection, leading to slower transfer times that may disrupt sensitive equipment. When evaluating ECO modes, check the efficiency improvement, the transition time, and whether the system can switch seamlessly, ideally maintaining transfer times under 1 millisecond.
Measuring Energy Loss in Different Load Conditions
A thorough assessment of energy loss should consider both direct consumption by the UPS and any indirect effects on downstream equipment. For instance, a UPS with 96% efficiency might seem ideal, but if it introduces harmonic distortion that reduces the efficiency of connected equipment by 1.5%, the actual energy loss may be higher.
Modular UPS systems are often better at minimizing these secondary effects due to their superior waveform quality and power factor characteristics. To get an accurate picture of energy consumption, it’s important to use professional power analyzers to measure both direct and indirect losses.
5. Reliability and Availability Metrics
Mean Time Between Failures (MTBF)
MTBF (Mean Time Between Failures) indicates how reliable a UPS system is expected to be. Most high-quality UPS systems are rated for between 200,000 to 500,000 hours (roughly 23 to 57 years) at 25°C. However, MTBF figures should be interpreted carefully, as real-world operating conditions, particularly temperature, can significantly affect actual reliability.

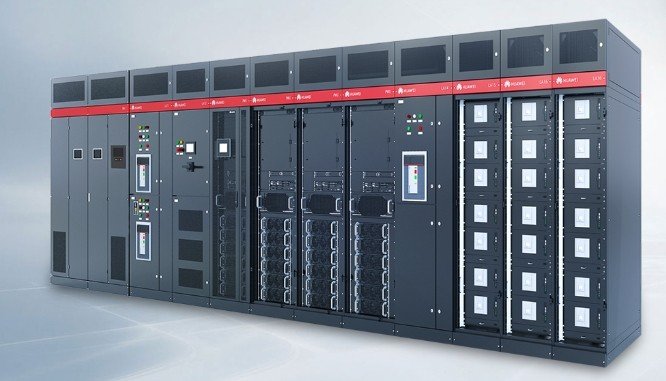

Modular UPS systems, with their distributed architecture, tend to offer superior reliability. If one module fails, the rest of the system can continue operating, ensuring uninterrupted power. For instance, a modular UPS with six 20kVA modules (each rated with a 300,000-hour MTBF) could continue functioning even if several modules fail.
Battery Autonomy and Runtime Performance
UPS runtime performance is about more than just how long a battery lasts—it’s about maintaining stable voltage during discharge. Some systems, like modern lithium-ion UPS systems (e.g., SmartLi), provide more consistent voltage throughout the discharge process and offer better overall performance than traditional VRLA batteries.
When evaluating runtime, consider whether the system’s numbers reflect performance with fresh batteries or with batteries approaching the end of their life cycle. Manufacturer specifications often provide ideal runtime figures that may not match real-world performance due to factors like battery age and temperature.
Transfer Time to Battery Mode
The transfer time to battery mode refers to how quickly the UPS can switch to battery power during a utility outage. A UPS that can transfer power within 10 milliseconds is generally suitable for most IT equipment, while mission-critical systems in industries like healthcare may require a transfer time under 4 milliseconds.
Double-conversion online UPS systems inherently provide zero transfer time, while line-interactive designs typically have transfer times of 2-6 milliseconds. It’s also essential to check for any potential waveform disturbances during this transition, as some systems may cause voltage spikes or frequency variations that can affect sensitive equipment.
6. Power Quality Assessment
Total Harmonic Distortion (THD) Analysis
Total Harmonic Distortion (THD) measures the purity of a UPS’s output waveform. Low THD values (under 3%) are essential for ensuring optimal performance of sensitive equipment. Poor waveform quality can lead to transformer overheating, reduced power supply efficiency, and false alarms in monitoring systems.
Modular UPS systems are often better at minimizing harmonic distortion, with systems like the UPS5000-E achieving THD levels of less than 3% across its entire operating range. When reviewing THD metrics, always check whether the value represents typical or maximum performance and whether it changes under different load conditions.
Crest Factor and Waveform Purity
Crest factor (the peak-to-RMS voltage ratio) indicates how well a UPS handles non-linear loads, such as modern server power supplies. Quality systems typically maintain crest factors between 2.5 and 3.0 at full load. If a UPS can’t handle high crest factors, it could cause voltage flat-topping, stressing equipment and reducing efficiency.
Some advanced UPS systems, like Huawei’s smart power supply solution, feature adaptive waveform shaping that adjusts to the load characteristics in real time, optimizing output for mixed load environments. Always test with equipment that closely matches your actual load characteristics.
Transient Response and Recovery Time
Transient response refers to how a UPS handles sudden changes in load, such as when servers power on or large HVAC systems are activated. Premium systems maintain voltage within ±5% during load steps and recover to within ±1% within 10 milliseconds. Poor transient response can cause data corruption or equipment resets.
7. How to Conduct a Comprehensive UPS Evaluation
Step-by-Step Performance Testing Protocol
A thorough UPS evaluation starts with baseline measurements at various load levels (e.g., 25%, 50%, 75%, 100%) to assess voltage, current, power factor, efficiency, and THD. Follow this with dynamic tests, including load step changes, transfer tests, and fault simulations. For modular systems, include module hot-swapping and redundancy tests.
Interpreting Manufacturer Specifications
Carefully analyze manufacturer specifications. Claims about efficiency, runtime, and other metrics often reflect ideal conditions, so it’s essential to verify whether the numbers provided are realistic for your operating environment.
Tools and Equipment for Field Measurements
Use proper instrumentation to evaluate UPS performance. This includes true-RMS power analyzers, harmonic analyzers, oscilloscopes, and thermal imaging cameras. Conduct power quality monitoring over extended periods to capture rare but important events.
Conclusion
Understanding the essential UPS performance metrics is crucial for ensuring reliable power protection in data centers. From input voltage tolerance and output voltage regulation to battery autonomy and energy efficiency, each metric provides valuable insights into a UPS’s ability to handle real-world conditions. By conducting regular performance evaluations and staying informed about the latest UPS technologies, data center operators can maximize the reliability, efficiency, and overall performance of their power protection systems.
